Headscale Series: Using MagicDNS in Headscale

· 2 min read
OwnDing
Larktun Contributor

This post walks through enabling MagicDNS in headscale, plus practical usage of extra-records.json so clients can reach devices by hostname instead of memorizing raw IP addresses.

Original post: headscale系列：如何在headscale中使用MagicDNS

Scenario​

  • After login, clients can communicate with peers using hostnames in addition to IP.
  • On Windows, tailscale writes host mappings into the system hosts file.
  • This is especially useful when using features like 4via6.

Enable MagicDNS​

Update your config.yaml (core options shown below):

dns:
  magic_dns: true
  base_domain: example.com
  override_local_dns: false

  nameservers:
    global:
      - 1.1.1.1
      - 1.0.0.1

  search_domains: []
  extra_records_path: /var/lib/headscale/extra-records.json

Using extra_records_path makes DNS record updates easier to maintain.

extra-records.json Example​

[
  {
    "name": "192-168-6-1-via-7",
    "type": "AAAA",
    "value": "fd7a:115c:a1e0:b1a:0:7:c0a8:601"
  }
]
  • type supports A (IPv4) and AAAA (IPv6).
  • On first migration from inline extra_records to file-based records, one restart is recommended.
  • After that, changing extra-records.json is usually enough.

Usage​

After clients come online, you can access target services by the custom DNS name.

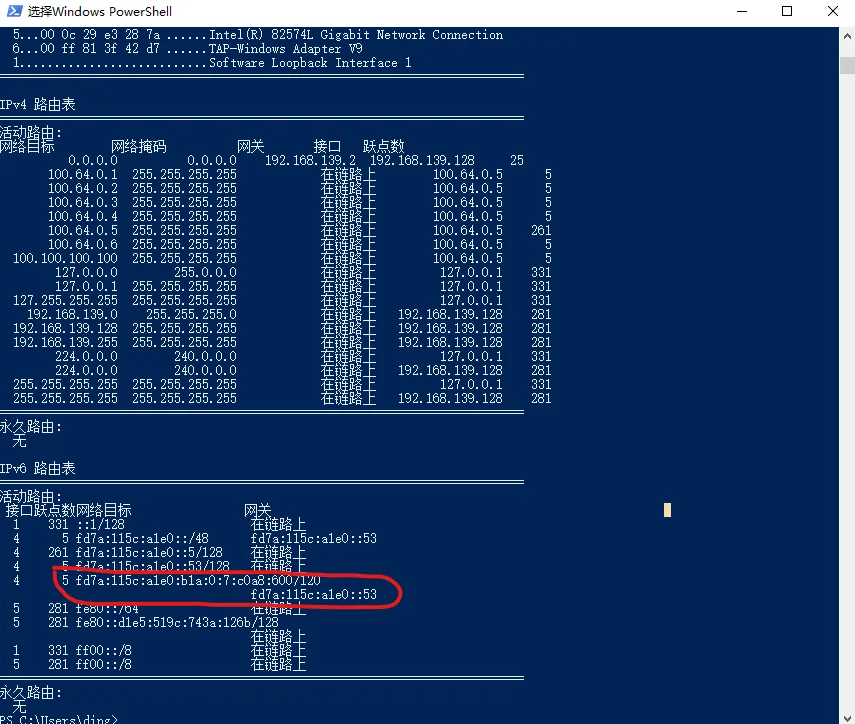

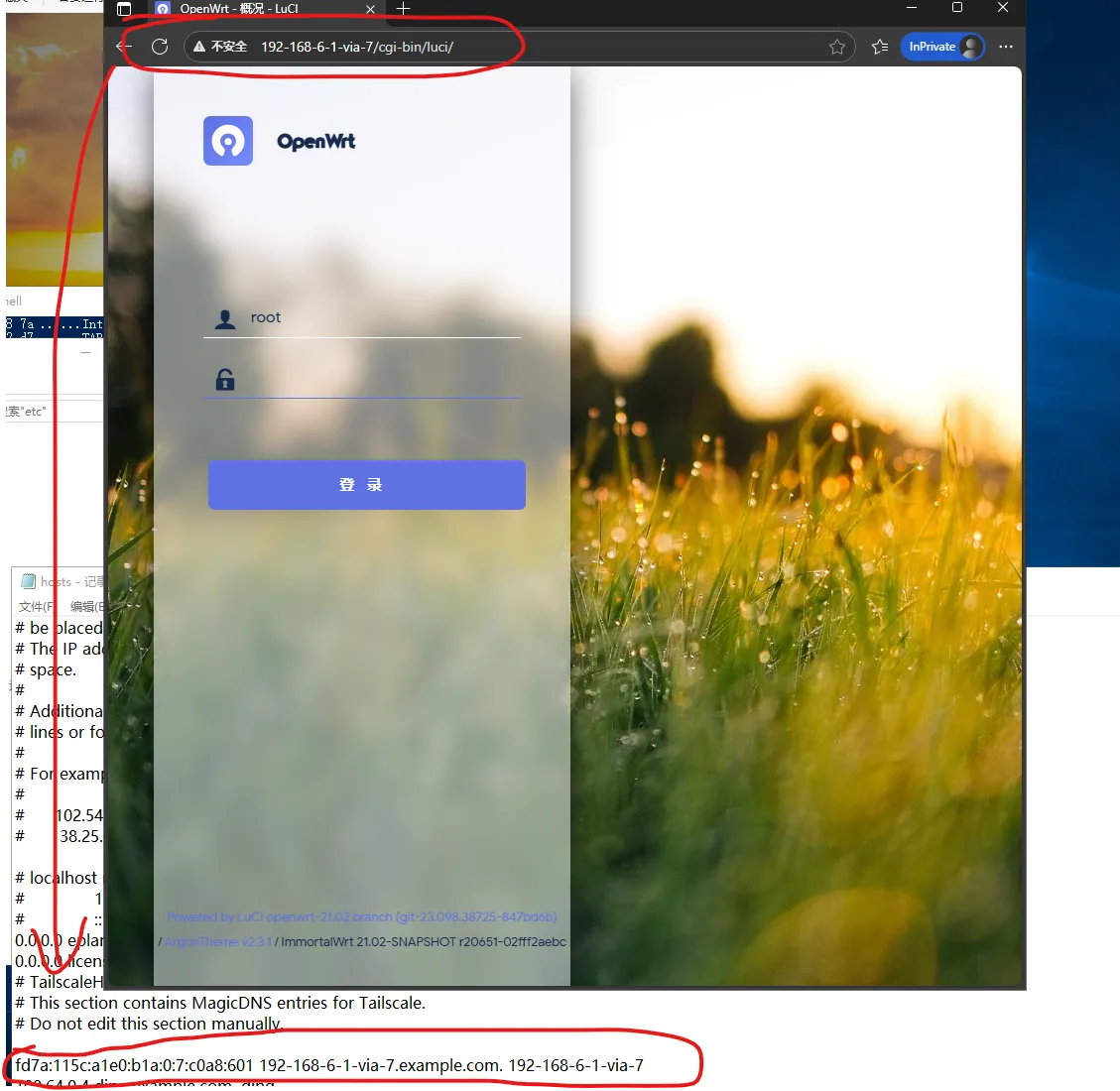

route table update magicdns query example

This article is mirrored on the Larktun blog. For source updates and original context, refer to: headscale系列：如何在headscale中使用MagicDNS
